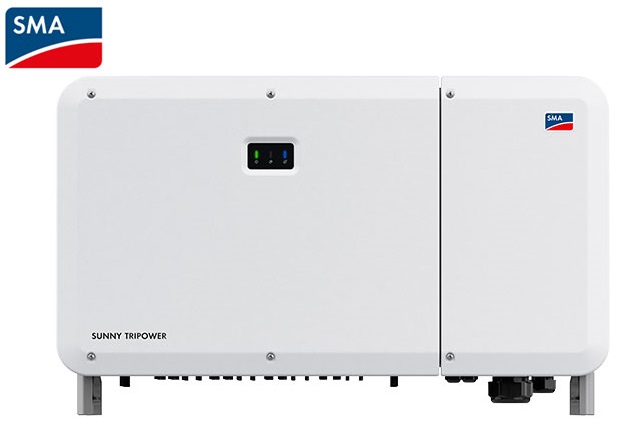

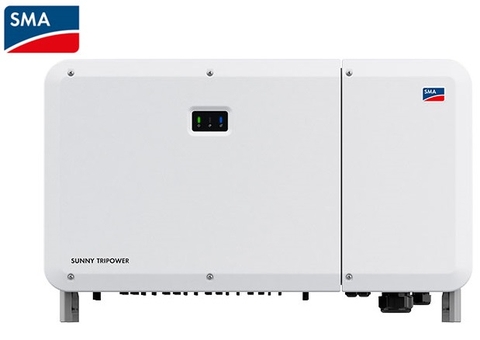

Solar Chiến Long gửi đến khách hàng báo giá Sunny Tripower CORE2 là một thành phần trung tâm của Hệ thống Điện mặt trời SMA.
THÔNG SỐ KỸ THUẬT
|
TECHNICAL DATA |
SUNNY TRIPOWER CORE2 |
|
Input (DC) |
|
|
Max. PV array power |
165000 Wp STC |
|
Max. input voltage |
1100 V |
|
MPP voltage range |
500 V to 800 V |
|
Rated input voltage |
585 V |
|
Min. input voltage / Start input voltage |
200 V / 250 V |
|
Max. input current per MPP tracker / Max. short-circuit current per MPP tracker |
26 A / 40 A |
|
Number of independent MPP trackers / Strings per MPP tracker |
12 / 2 |
|
Output (AC) |
|
|
Rated power at nominal voltage |
110000 W |
|
Max. apparent AC power |
110000 VA |
|
Nominal AC voltage |
400 V |
|
AC voltage range |
320 V to 460 V |
|
AC grid frequency / range |
50 Hz / 45 Hz to 55 Hz |
|
Rated grid frequency |
50 Hz |
|
Max. output current |
159 A |
|
Power factor at rated power / displacement power factor adjustable |
1 / 0.8 overexcited to 0.8 underexcited |
|
Harmonic (THD) |
< 3% |
|
Feed-in phases / AC connection |
3 / 3-PE |
|
Efficiency |
|
|
Max. efficiency / European efficiency |
98.6% / 98.4% |
|
Protective devices |
|
|
Input-side disconnection device |
• |
|
Ground fault monitoring / grid monitoring / DC reverse polarity protection |
• / • / • |
|
AC short-circuit current capability / galvanically isolated |
• / – |
|
All-pole sensitive residual-current monitoring unit |
• |
|
Monitored surge arrester (type II) AC / DC |
• / • |
|
Protection class (according to IEC 62109-1) / surge category (according to IEC 62109-1) |
I / AC: III; DC: II |
|
General data |
|
|
Dimensions (W / H /D) |
1117 mm / 682 mm / 363 mm (44.0 in / 26.9 in / 14.3 in) |
|
Weight |
93.5 kg (206.1 lbs) |
|
Operating temperature range |
−30 °C to +60 °C (−22 °F to +140 °F) |
|
Noise emission, typical |
< 65 db(A) |
|
Self-consumption (at night) |
< 5 W |
|
Topology / cooling concept |
Transformerless / active cooling |
|
Degree of protection (according to IEC 60529) |
IP66 |
|
Max. permissible value for relative humidity (non-condensing) |
100% |
|
DC connection / AC connection |
Sunclix / terminal lug (up to 240 mm²) |
|
LED display (Status / Fault / Communication) |
• |
|
Ethernet interface |
• (2 ports) |
|
Data interface |
Web Interface / Modbus SunSpec |
|
Mounting type |
Wall mounting / rack mounting |
|
Warranty: 5 / 10 / 15 / 20 years |
• / º / º / º |
|
Certificates and approvals (selection) |
IEC 62109-1/-2, EN50549-1/-2:2018, VDE-AR-N 4105/4110/4120:2018, |
|
• Standard features º Optional features – not available Data at nominal conditions Status 03/2020 |
|
|
Type designation |
STP 110-60 |

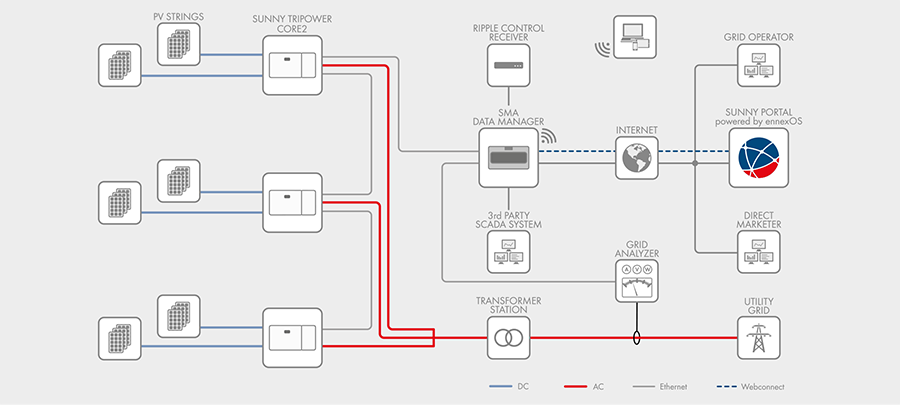

SƠ ĐỒ DẤU NỐI SUNNY TRIPOWER CORE2
