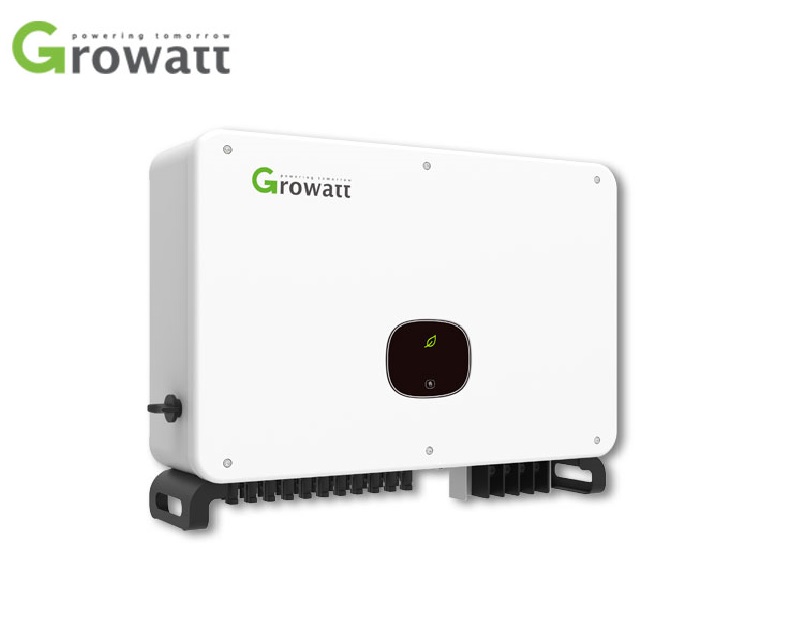

Bộ hòa lưới Inverter Growatt MID 30KTL3-X 30KW - 3 Pha 380V - 2MPPT

Thương hiệu: Growatt Mã sản phẩm: ID 30KTL3-X
39.800.000₫

Inverter Growatt MID 30KTL3-X 30kW

SKU: MID 30KTL3-X
Nhà sản xuất: Growatt
Công suất: 30kW
Điện áp ngõ ra: 3 Pha 380V
Loại: 3 MPPT
Chất lượng: Mới 100%
Bảo hành: 5 năm
Chứng từ: CO/CQ, hóa đơn VAT
Bảo hành 5 năm

ĐẶC ĐIỂM NỔI BẬT

Bộ hòa lưới Inverter Growatt MID 30KTL3-X 30KW

KU: MID 30KTL3-X
Nhà sản xuất: Growatt
Công suất: 30kW
Điện áp ngõ ra: 3 Pha 380V
Loại: 3 MPPT
Chất lượng: Mới 100%
Hiệu suất tối đa 98.7%
Nhỏ gọn và nhẹ hơn 40%
2 MPPT
Hỗ trợ kiểm soát công suất phát lên lưới
Nút cảm ứng và màn hình hiển thị OLED
Chống sét lan truyền AC và DC type II
Dữ liệu lưu trữ lên đến 25 năm
Kết nối DC sẵn có 2 trong





Thông số kỹ thuật:

Datasheet

MID 30KTL3-X

Input data (DC)



Max. recommended PV power



(for module STC)

45000W

Max. DC voltage

1100V

Start Voltage

250V

Normal Voltage

600V

MPPT voltage range

200-1000V

No. of MPP trackers

3

No. of PV strings per MPP tracker

2

Max.input current per MPP tracker

26A

Max. short-circuit current per MPP tracker

32A

Output data (AC)



AC nominal power

30000W

Max. AC apparent power

33300VA*

Nominal AC voltage(range*)

220V/380V, 230V/400V (340-440V)

AC grid frequency(range*)

50/60 Hz (45-55Hz/55-65 Hz)

Max. output current

50.5A

Adjustable power factor

0.8leading…0.8lagging

THDi

<3%

AC grid connection type

3W+N+PE

Efficiency



Max.efficiency

98.80%

European efficiency

98.50%

MPPT efficiency

99.90%

Protection devices



DC reverse polarity protection

Yes

DC Switch

Yes

AC/DC surge protection

Type II / Type II

Insulation resistance monitoring

Yes

AC short-circuit protection

Yes

Ground fault monitoring

Yes

Grid monitoring

Yes

Anti-islanding protection

Yes

Residual-current monitoring unit

Yes

String monitoring

Optional

Anti-PID function

Optional

AFCI protection

Optional

General data



Dimensions (W / H / D)

575/420/225mm

Weight

30kg

Operating temperature range

-35°C+60°C

Noise emission (typical)

≤50dB(A)

Nighttime power consumption

<1W

Topology

Transformerless

Cooling

Smart air cooling

Protection degree

IP66

Relative humidity

0-100%

Altitude

4000m

DC connection

H4/MC4(Optional)

AC connection

Cable gland+OT terminal

Display

OLED+LED/WIFI+APP

Interfaces: RS485 / USB /WiFi/ GPRS / RF/ LAN

Yes/Yes /Optional/Optional/Optional/Optional

Warranty: 5 years / 10 years

Yes /Optional
